Insulated Dual-Pane Glass: Featuring a high-clarity double-pane glass system that balances natural light with thermal insulation, keeping your space comfortable year-round.
Zero-Maintenance uPVC: Engineered with high-impact, multi-chambered vinyl that resists rot, corrosion, and UV fading—eliminating the need for painting or scraping.
Modern Slim-Profile: A minimalist aesthetic designed to maximize your view, perfect for sunrooms, modern office venues, and contemporary shopping malls.
Commercial-Grade Durability: Built for longevity in high-traffic or high-moisture environments, from industrial factories to professional office buildings.
In architectural design, the awning window is the premier solution for maintaining airflow without compromising interior comfort. By swinging outward from the bottom, these windows act as a functional shield, allowing rising warm air to escape while preventing rain from entering—a critical feature for sunrooms, kitchens, and commercial venues. Unlike traditional metal frames that can transfer heat, our multi-chambered uPVC construction provides a superior thermal break, working in tandem with the insulated double-pane glass to stabilize indoor temperatures and dampen external noise, even in busy mall or factory environments.
Beyond its performance in the elements, this window series is designed for the modern “set-and-forget” lifestyle. The sleek, vertical opening pattern is optimized for spaces where floor area is at a premium, such as office buildings or high-traffic entryways. Because high-grade vinyl is naturally immune to salt air and humidity, these windows won’t swell, warp, or corrode over time. Whether you are retrofitting a classic commercial facility or specifying for a new contemporary project, these windows deliver a total solution that combines rugged structural integrity with a clean, professional aesthetic that stands up to the test of time.
| Specification | ||
|---|---|---|
| Name | Vinyl Awning Window | |
| Profiles | series | Commonly used series:46/50/60/65/70/80mm: |
| max-glass-thickness:3-32m | ||
| Thickness | 1.8/2.0/2.2/2.5/2.8mm | |
| Finish | Extrusion profiles | |
| Single-sided/double-sided co-extrusion profiles | ||
| Single-sided/double-sided coated profiles | ||
| All-body profiles | ||
| color | Brown\ dark grey\light grey\ black\star black | |
| Glass | Types | Low-e glass\frosted glazing\ grey/blue/green tinted glass,etc. |
| Double tempered glazing:5+12A+5,6+12A+6 | ||
| Single tempered d glazing:6,8,10,12... | ||
| Laminated glass:6.38,10.76,10.38... | ||
| Thickness | 4-19mm. | |
| color | clear/super clear/ tinted blue/green/coffee brown/gray | |
| Hardware | Brand:Germany brand\Australia brand\China brand | |
| Handle lock+transmission rod+hinge+limit stopper+EPDM sealing strip+invisible screen | ||
| Handle lock+transmission rod+hinge+limit stopper+ EPDM seal strip +invisible screen | ||
| Handle lock+transmission rod+hinge+limit stopper+ EPDM seal strip +invisible screen | ||
| Steel line | 1.0mm,1.2mm,1.5mm,2.0mm | |
| Mesh | Stainless steel security mesh\UPVC security mesh | |
| Fiberglass flyscreen\Retractable flyscreen | ||
| Advantages | Large openable area for maximising ventilation | |
| Wide sash profile creates an appealing ‘picture frame’ effect | ||
| Flush-faced external profile for shedding dust and rain | ||
| Internally fitted screens | ||
| Continuous seal system provides excellent weatherproofing and acoustic (noise reducing) properties |
Why Vinyl Awning Windows Dominate Moisture-Prone Spaces The engineering behind vinyl awning windows makes them uniquely suited for applications where water intrusion, steam, and condensation are everyday realities. The compression seal—formed when the sash is
A properly engineered uPVC/vinyl awning window with multi-chambered framing and dual-seal insulated glass will deliver 25 to 35 years of reliable service in harsh climates, provided the installation meets AAMA/WDMA certification standards. The decisive factors

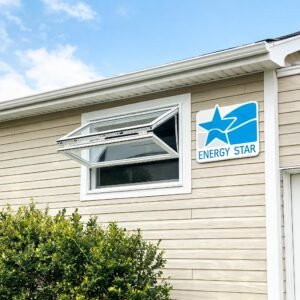

Yes, properly engineered vinyl awning windows deliver exceptional energy efficiency, typically achieving U-values between 0.25 and 0.30 and air leakage ratings below 0.05 cfm/ft²—making them among the most thermally efficient operable window styles available for

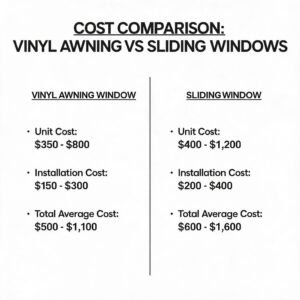

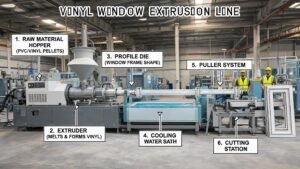

Why Vinyl Awning Windows Command Specific Pricing Unlike double-hung or sliding windows, awning windows operate on a hinge mechanism that must support the full weight of the sash in the open position. This mechanical requirement

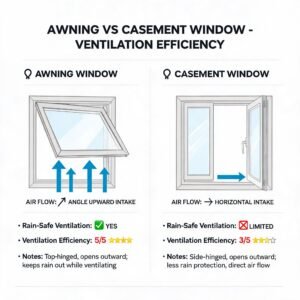

The Engineering Foundation: Why Hinge Placement Drives Performance Every production builder and architect needs to understand this: the physics of airflow through an opening window is governed by the hinge location. Casement windows, also called

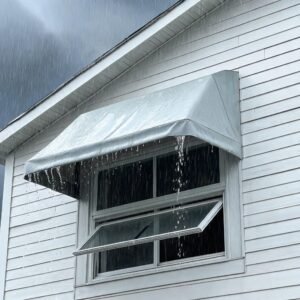

Vinyl awning windows deliver superior rainproof ventilation because their top-hinged, outward-opening sash design creates a natural awning effect that deflects precipitation while allowing continuous airflow. This engineering principle, known as the “sheltered opening” configuration, leverages

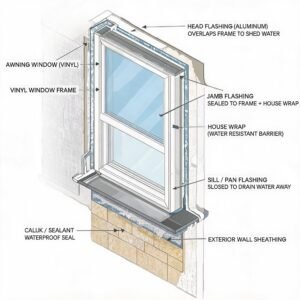

A vinyl awning window is a top-hinged, out-swinging unit with a single or multi-pane sash, designed to provide ventilation even during rain while maintaining a weathertight seal. The core engineering relies on a scissor-gear mechanism
Flush Fin
J channel
Block Frame
Nail Fin
Aluminum Nail Fin
UPVC/PVC Double-Glazed
UPVC/PVC Triple-Glazed
Aluminum Double-Glazed
Aluminum Triple-Glazed
Matt
Glossy
Tempered Glass
Reflective Glass
Laminated Glass
Tinted Glass
Hollow Glass
Float Glass
Art Glass
Pattern Glass
Frosted Glass
Low-E
Laminated
Medi-Empty
Suface Mounted
Integral(Thermo)
External Glazing Bars
Duplex
Handle
Drainage Hole
Weather Strip
Sealing Strip
Installing Glass
Installing Track
Installing Pulley
Installing Pulley and Lock
Yes, our windows are engineered for superior energy efficiency. We offer Low-E glass and Argon gas-filled options that meet or exceed US energy standards, significantly reducing your heating and cooling costs.
Absolutely. We specialize in custom sizes to fit your specific architectural requirements. You can choose from a wide range of frame colors, including popular black, bronze, and anthracite grey, as well as various grid patterns.
Our windows are built to last 20-30 years. Vinyl windows are virtually maintenance-free (won’t rot or peel), while our powder-coated aluminum frames are highly resistant to corrosion and fading.
Yes. Our Hurricane Impact Windows are engineered with laminated glass technology and heavy-duty reinforced frames. They are designed to withstand high-velocity debris and extreme pressure changes during storms, meeting rigorous ASTM standards for coastal safety.
Absolutely. Because the glass is extremely difficult to break through, our impact-resistant windows act as a 24/7 deterrent against forced entry and burglaries, while also providing exceptional sound insulation.
Yes, we regularly ship to the US market. All windows are packed in heavy-duty plywood crates with protective foam to ensure they arrive at your job site in perfect condition.
