Proper maintenance and tilt-in cleaning of vinyl double hung windows ensure long-term operability, energy efficiency, and compliance with AAMA 2604 performance standards—starting with correct latch operation and balance lubrication. The tilt-in mechanism relies on a synchronized cam-action latch system that disengages the sash from the jamb tracks when rotated 180°, allowing safe interior cleaning without exterior access. Regular lubrication of the spiral or constant-force balance assemblies (using a dry PTFE or silicone-based lubricant) reduces friction by up to 40% per ASTM E2068 testing, directly extending window service life and minimizing callbacks for builders and contractors.

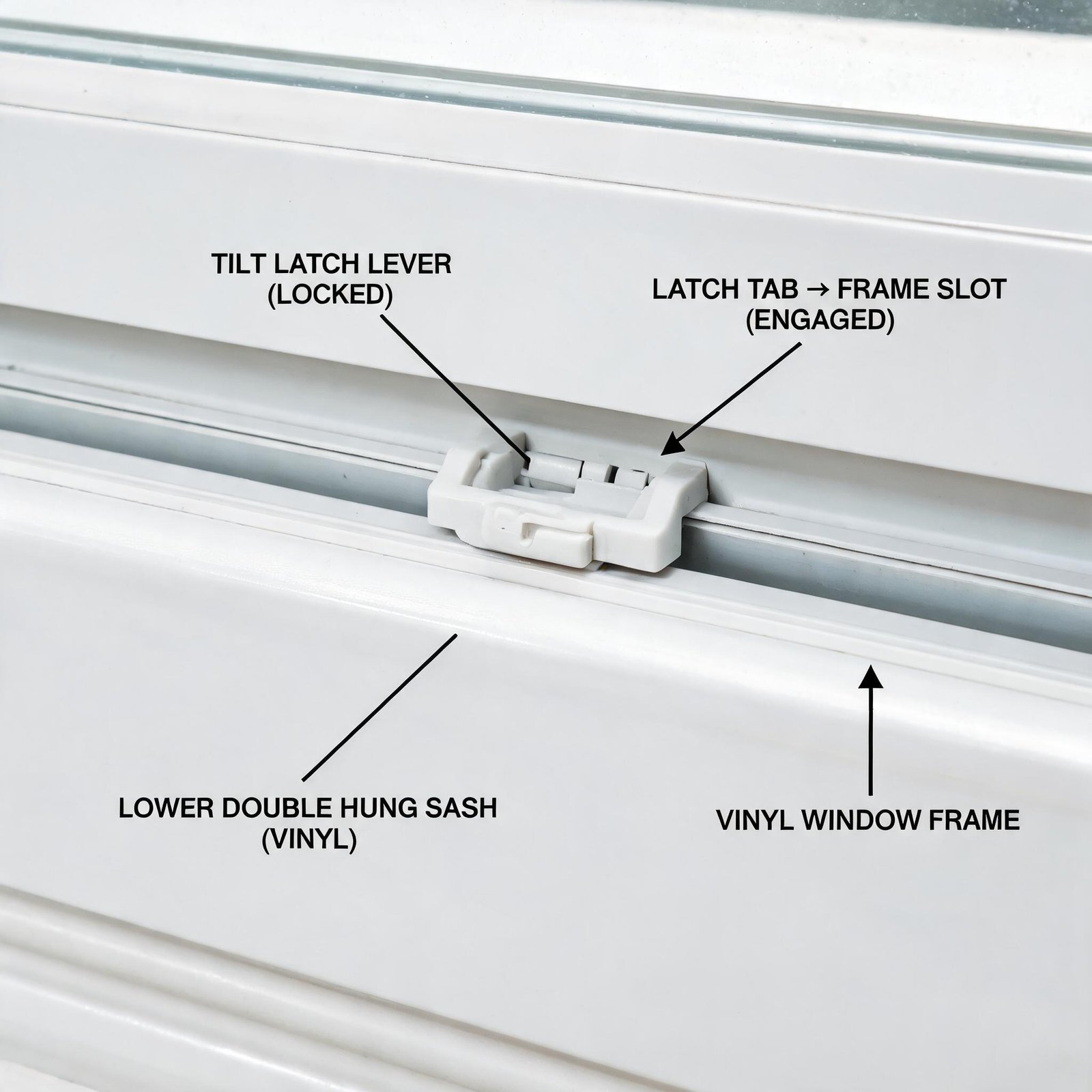

How to Operate Tilt Latches on Double Hung Windows
Understanding the latch operation is critical for safe cleaning and preventing hardware damage. The tilt latches are integrated into the meeting rail on most modern vinyl double hung windows. Follow these steps:
- Unlock the window – Rotate the cam lock or Tilt-n-Lock handle to the unlocked position (typically 90° from vertical).
- Raise the bottom sash – Lift the sash about 3–4 inches above the sill to allow clearance for tilt.
- Disengage the tilt latches – Press both thumb latches inward simultaneously (or rotate a single combined latch to the 180° position). You will hear a click when the latches fully disengage from the jamb.
- Tilt the sash inward – Gently pivot the sash toward you until it rests securely on the interior sill. Do not lean the glass directly on hard surfaces; use a padded support if needed.
Pro Tip: Never force the sash if it resists tilting—check that the window is fully unlocked and the sash is slightly raised. For windows wider than 36 inches, two separate locks (one cam lock and one tilt latch) are common; operate both in sequence.
For top sash tilt on double-hung units, lower the top sash about 3 inches after tilting the bottom sash, then press the thumb latches on the top sash to release it. Always support the top sash with a stable, padded surface.

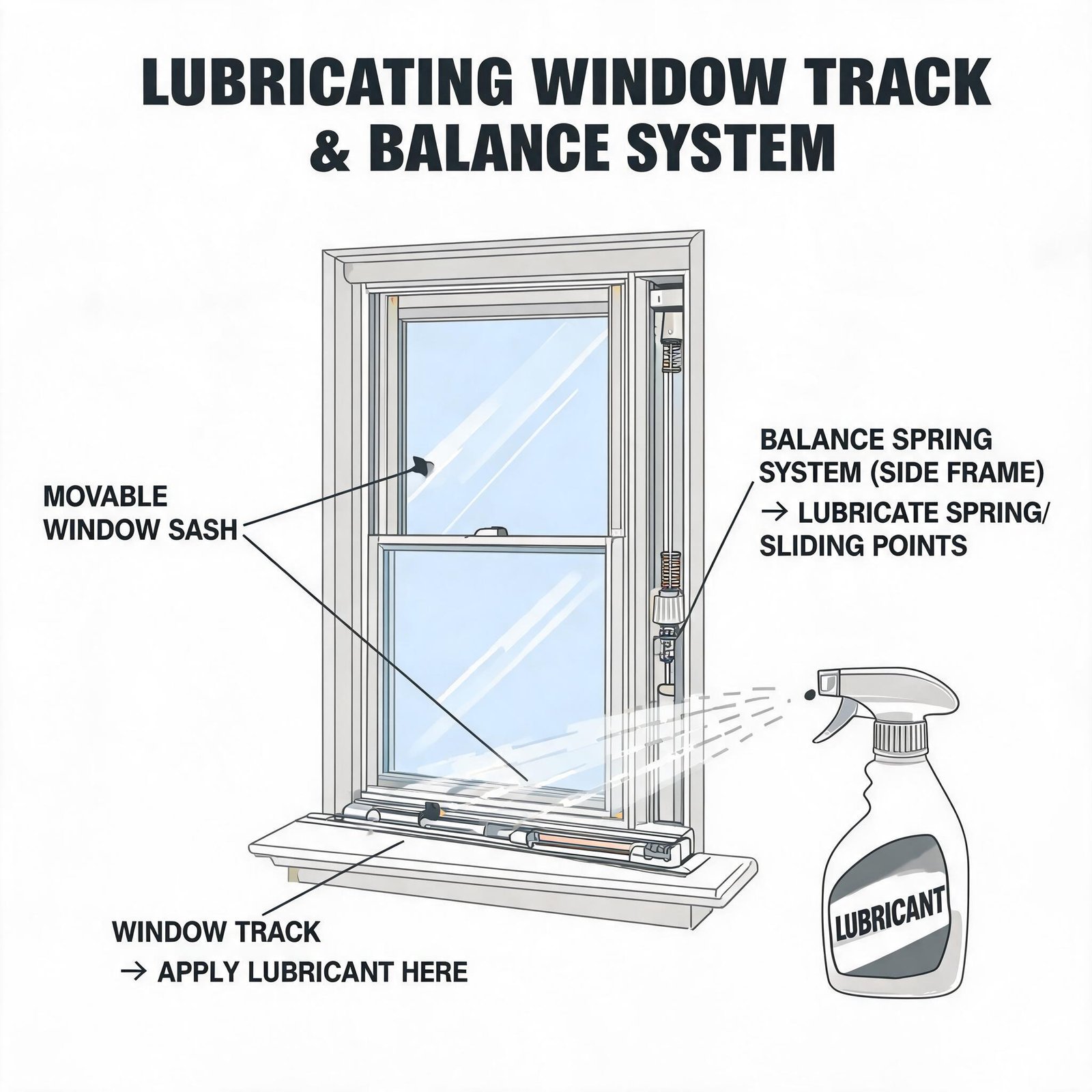

Lubricating Vertical Sliding Window Tracks and Balances
Many callbacks stem from sticky operation caused by dried-out lubricant or debris in the balance and track system. Use only dry PTFE or silicone-based lubricants—never oil or grease, which attract dirt and degrade vinyl over time.
Balance System Lubrication
- Spiral balances – Apply a light spray of dry silicone to the metal spiral rod while the sash is tilted. Work the sash up and down several times to distribute the lubricant.
- Constant-force (block-and-tackle) balances – Access the balance shoe through the jamb slot; apply a small amount of PTFE powder to the shoe guide. Avoid over-lubrication to prevent slipping.
Track Lubrication
- Clean the tracks with a soft brush and mild soap solution before lubricating.
- Spray a thin coat of dry lubricant along the full length of the jamb track, especially where the balance shoe rides.
- Operate the sash through its full range of motion five times to equalize lubrication.
Maintenance frequency: Lubricate all accessible tracks and balances annually (spring or fall) or whenever operation feels gritty. For high-humidity or coastal environments (e.g., Florida, Gulf Coast), increase to every six months.
Cleaning Double Hung Windows from Inside the Building
The tilt-in feature eliminates the need for ladders or exterior scaffolding—essential for multi-story commercial or residential projects. Follow industry best practices to avoid damaging the frame or glass coatings.
Exterior Glass Cleaning via Tilt-In
- Tilt both sashes inward (top sash first, then bottom) per the latch operation steps above.
- Use a microfiber cloth and a pH-neutral glass cleaner (e.g., Windex® Original) or a 70% water / 30% white vinegar solution. Avoid ammonia-based cleaners on low-E coatings.
- Clean one side at a time, supporting the sash with one hand. For large or impact-resistant units, a padded sawhorse or helper is recommended.
- Rinse with clean water using a spray bottle (never high-pressure spray).
- Let the glass air-dry or use a clean, lint-free cloth.
Frame and Sash Cleaning
- Wash the vinyl frame, sashes, and meeting rails with a soft cloth dipped in mild dish soap and warm water.
- For stubborn stains like mildew, rust, or crayon, refer to the cleaning matrix below.
Never use: Scrubbing pads with abrasive grit, chlorine bleach, nail polish remover, or any cleaner containing organic solvents (acetone, toluene). These can permanently etch vinyl and degrade weatherstripping.
Recommended Cleaning Solutions for Common Stains
| Stain Type | Recommended Cleaner | Application Method | Caution |
|---|---|---|---|
| Mildew / Mold | 30% white vinegar + 70% water | Spray and wipe with soft cloth | Test on hidden area first |
| Grease / Oil (motor, lithium) | Fantastik® or Murphy’s Oil Soap® | Apply to cloth, not directly on window | Rinse thoroughly after |
| Paint (dried) | Brillo Pad® (non-abrasive sponge) | Gently rub in circular motion | Avoid on tinted or textured surfaces |
| Chewing gum | Freeze with ice pack, then scrape | Use plastic scraper | Do not use razor blade on vinyl |
| Rust stains | Fantastik® or Lysol® | Soak stain for 2 minutes, wipe | Rinse immediately |
| Crayon / Marker | Lestoil® or water-based cleaner | Apply to soft cloth, buff | Ventilate area |
Troubleshooting Common Issues
- Sash won’t tilt in – Verify the lock is fully disengaged (180° position). Check that the sash is raised 3–4 inches. If still stuck, the tilt latch springs may be corroded; apply silicone lubricant to the latch mechanism.
- Window won’t lock properly – Ensure the sash is fully seated in the frame and the tilt latches are engaged. Misalignment often occurs when the balance tension is off; adjust the balance shoe or replace the spiral rod.
- Sash drifts down – Constant-force balances may lose tension over time. Replace the balance unit (spiral or block-and-tackle) matching the OEM part number.
- Hard to operate after cleaning – Usually due to residual soap film on tracks. Rinse tracks with clean water and re-lubricate with dry PTFE.
For detailed balance replacement instructions, refer to our guide on replacing the balance in a double hung window (covered in a separate post). If you need OEM parts, contact your supplier with the window series and sash weight.
